- Place of Origin:CN;GUA
- Model Number:BCE405
- Brand Name:Bodyperfect
- Type:Exercise Bike
- Product Name:Stair Climber
- Resistance:Saddle vertically adjustable system
- Transmission:Smooth and silent belt transmission
- Application:Fitness Club
- Occupation Size:1217mm*712mm*1741mm
- Packing:Plywood Case
- Certification:EN957
- G.W:120kg

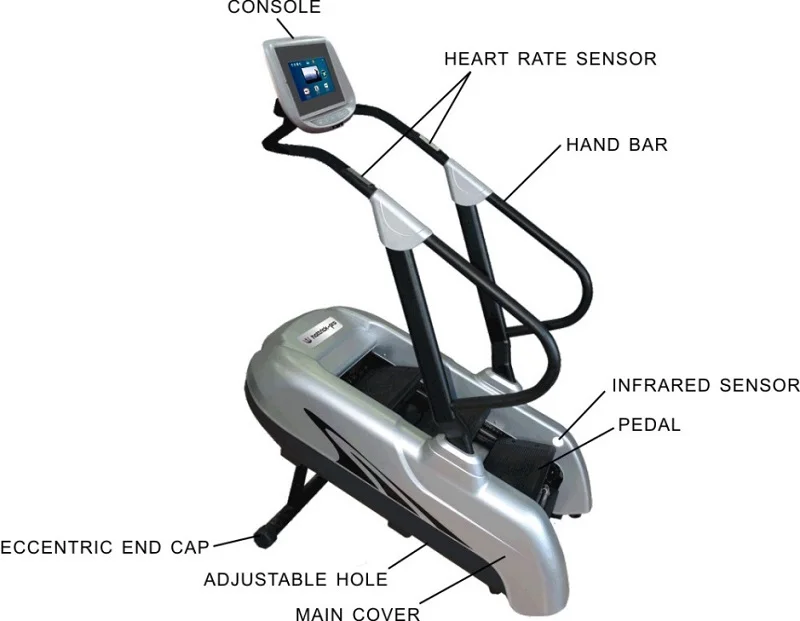

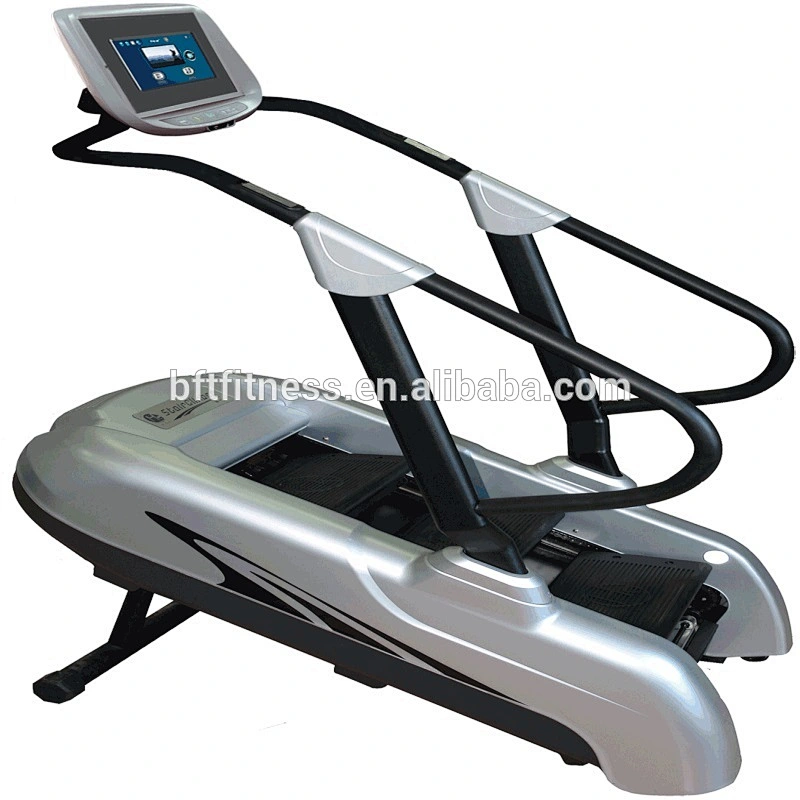

BCE405 Stair Climber fitness machine
1. Ensure that the stair climber is installed and used on a stable horizontal surface and the installation base can withstand the body and the user weight.

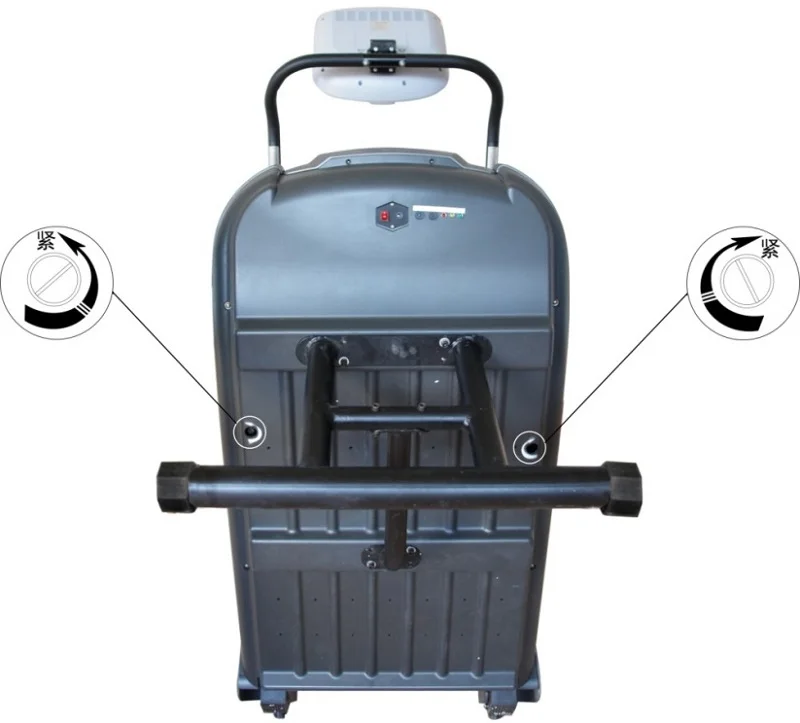

3. Please correctly install the machine by referring to the installation instructions and ensure that the connection is secure.
Before Use
·The product must be stably placed in flat surface and soundly ventilated location.
·Do not let children close to the machine when the people using to avoid accidents.
·Do no sport right after meal.
·Please get fully prepared before sport.
·Please wear the light clothing and sports shoes for exercise.
·Please hold the handle tightly during the sport so as to avoid falling.
·Please keep far away from gang-board during utilization.
·Please maintain the product at regular intervals so as to keep the product safe and reliable.
Maximum load: | ≤150kg | Start load: | ≥35kg | The armrest width: | 634mm |
| Standard USB interface : | 5V±0.2V,2000mA | Whole weight: | 110kg | Ladder height: | 122mm |
| Mounain slope: | 25° | Speed range: | 4m/min~20m/min | Maximum noise: | ≤65dB(A) |
| Floor space (L*W*H): | 1217*712*1741mm | Working voltage: | AC 100V~240V | Power waste: | <36W |

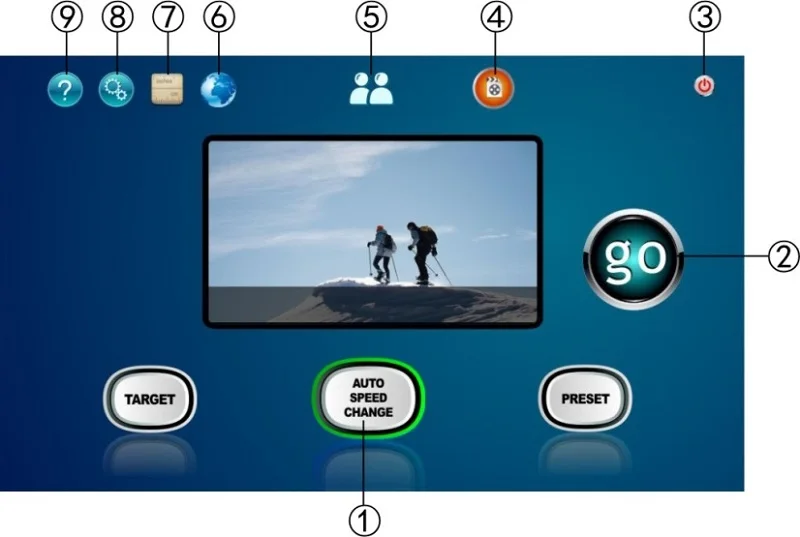

1 Movement mode selection
There are 2 modes for selection, namely target mode, and the auto speed change.
2 go
Click"Go"to start moving.
3 Power
Click to close the LCD screen.
4 Multimedia
Click to enter into the multimedia interface. You can select video, music, images, TV, AV, calendar and Bluetooth.
5 Administrator interface
Click LOGO and input the password"66666"to enter into the administrator interface, which can display the serial number, the total height,panel info,driver board version, software version, working voltage, mobile charging current, 5V voltage, 3.3V voltage and external charging voltage in a real-time manner, adjust brightness, set the athletics parameter adjustment coefficient and test the key function.
6 Language selection
Click to select Chinese or English.
7 Switch between metric and imperial systems
Click to for switch between metric and imperial systems.
8 System setting
Click to set the system and you can set the language, unit, incremental acceleration and deceleration, standby time, default speed limit, fast speed limit (1, 2, 3 and 4).
9 Help
Click to enter into the help interface and look over the help.
Warranty and After-Service
1. Warranty: 5 years (main parts), 1 year (easy-broken parts);
2. 1% total value easy-broken parts will go with goods for free;
3. We suggest you update new machine 5 years per time; During this time, any parts missing or broken, just let us know, parts will be sent to you ASAP. And you should share the parts cost and transportation fee.
Predictable Problem Solution
1. Assembling: Assemble instruction and helps will be provided, our stuff can be arrange to your country for assembing if need.
2. Parts Missing: Missing parts will be sent no more than 3 days, after confirmed.
We are professional commerical gym equipment manufacturer.
Our aim is to provide high quality and durable gym equipment with good service for our customer.
After several years development, now our quality is the BEST in Guangzhou.
Warmly welcome gym equipment wholesaler and agent to our factory for a visiting.
